PTH431: 43m Spider Lift Hire Brisbane

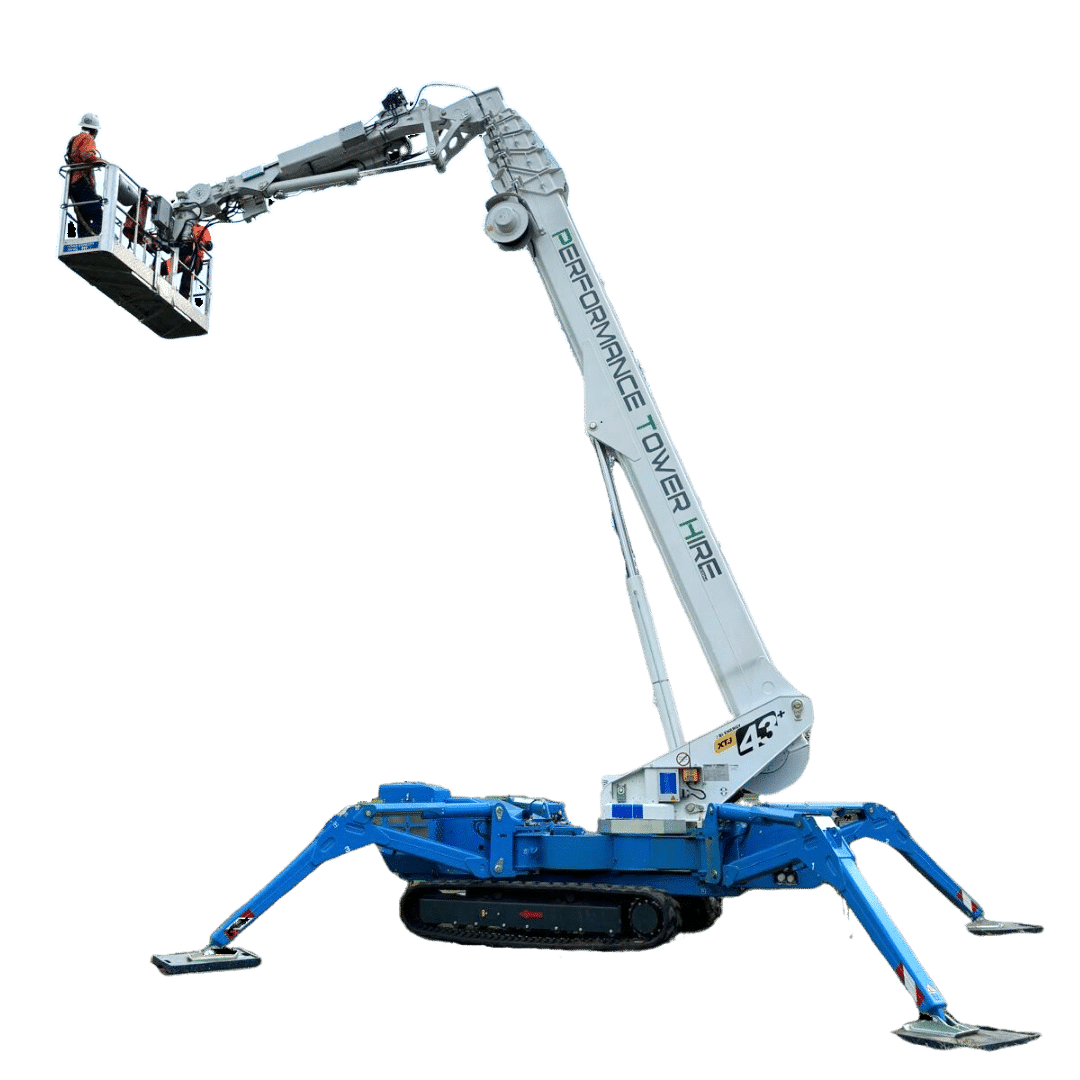

PTH431 is our Palazzani XTJ43 spider lift, built for sites where the truck towers can’t access. Its tracks retract to 1.35 metres for tight side access, then spread out to provide a stable base once you're in position. You get up to 43 metres of working height in spaces most machines can't touch. This machine gets the job done where access is narrow and ground conditions are tricky. Available for wet hire with a qualified operator. 24/7, Brisbane and SEQ.

Spider Lift hire
Brisbane spider lift hire

Book PTH431 Now

PTH431 handles the sites other machines can't get near, and it's booked out fast because of it. Contact us early to lock in your dates. Get a free quote below.

Fleet Unit

PTH431

Working Height

43m

Maximum Radius

18m

Platform Weight Capacity

330kg

Model Palazzani XTJ43
Working Radius at Max Height 4m
Outrigger Spread 6.7m x 5.6m
Platform Size (LxWxH) 2.4 x .70m x 1.1m
Platform Rotation 90 + 80 degrees
Turntable Rotation 660 degrees
Truck Type Volvo
Drive Type 8x4
Travelling Height 4.4m
Overall Length 12m
Overall Width 2.5m
Weight 10.9 tonne
Country of Origin Italy/Sweden

Where This Spider Lift Gets Used

If your worksite has difficult access, the Palazzani XTJ43 will often be able to come to the rescue. There are slime places the truck EWPs simply can’t reach. These are some examples of worksites that PTH431 gets booked for:

  • Narrow laneways, side gates and courtyards
  • Heritage sites and manicured surfaces where ground pressure matters
  • Sloped or uneven terrain that would need prep work for a truck-mounted unit
  • Confined jobs with obstacles the outriggers need to work around
  • Sites with underground services where a heavier EWP isn't an option

Want the full detail on how this machine handles tight access? Our Brisbane spider lift hire guide covers it in depth.

PTH431 Safety

All Performance Tower Hire EWPs for hire are fully compliant with all Australian standards, and the PTH431 spider lift is no exception. It gets meticulously serviced, and checked against AS 2550, with WHS paperwork current, before it leaves the yard on every job. On the job site itself, our operators factor ground pressure and site clearance into the pre-start check on every booking, along with the standard boom checks. Safety on every job is always our first priority.

spider lift hire brisbane

Spider Lift for Wet Hire Only

PTH431 is wet hire only because it has a working height of 43m, well above our 20m cutoff for dry hire. Operating this machine requires a decent level of experience - you’ll end up wasting hours of time if you’re not familiar with it. Manoeuvring it into place, setting up the four independent outriggers and navigating its controls need an operator familiar with tricky sites. With wet hire, we provide a qualified and experienced EWP operator who will get your job done efficiently and safely.

Contact us for a free quote

Call us when you’re planning your next project so we can assist you with safe height access as fully insured and accredited professionals.
