Truck PTH541: 54m Socage Hire Brisbane

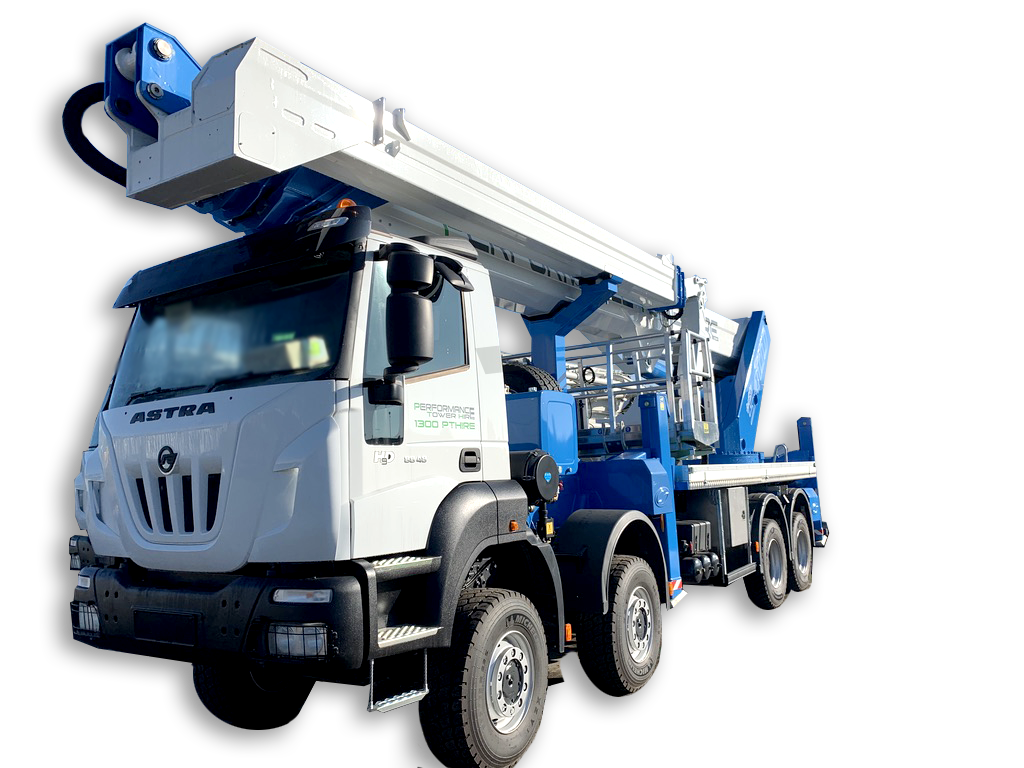

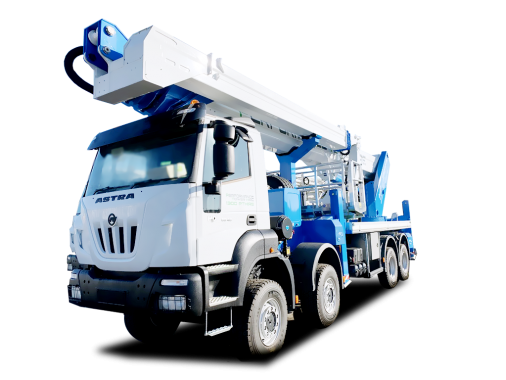

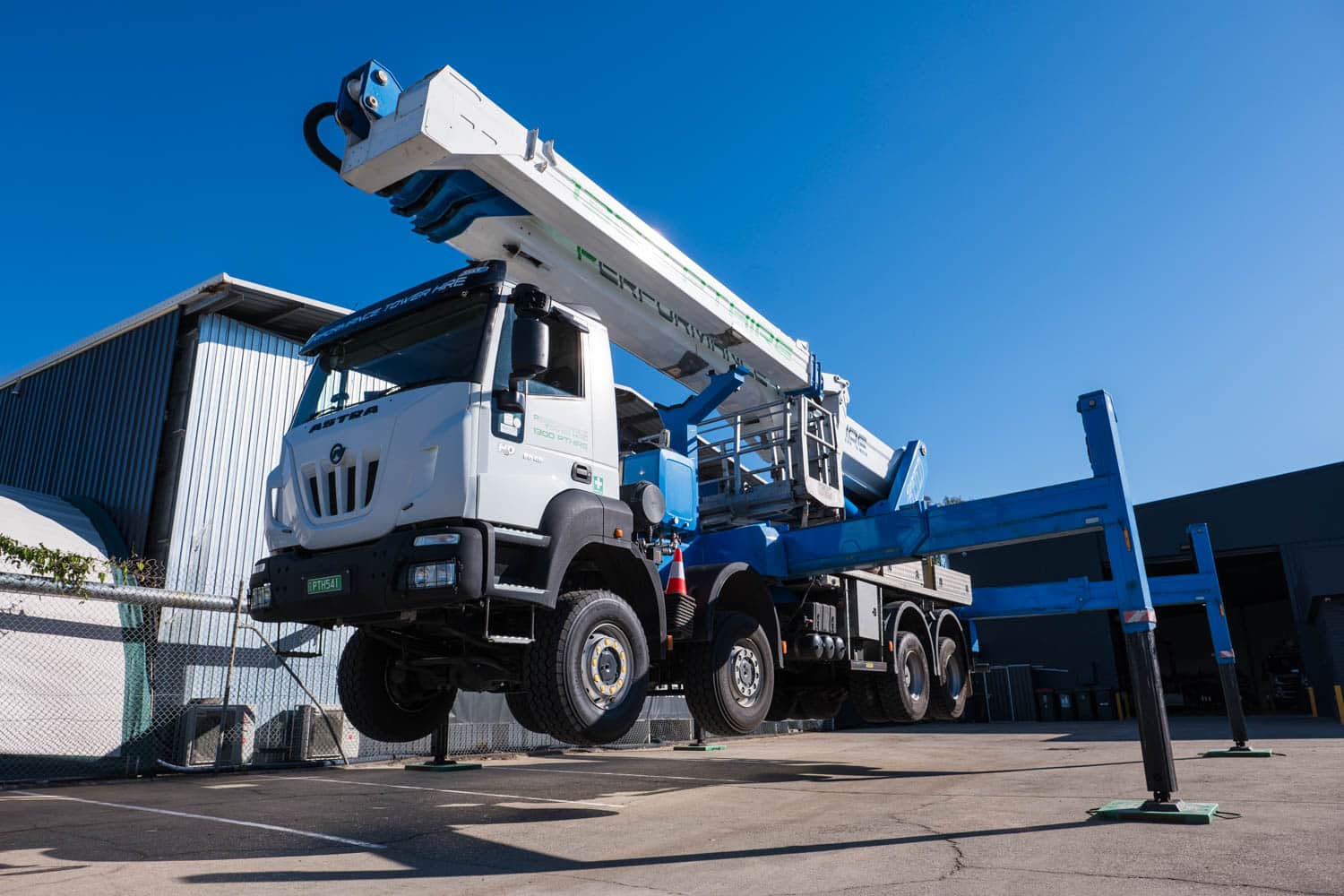

PTH541 (a Socage TJJ54) is the workhorse of our fleet's top end: 600kg basket capacity 54 metres of working height and 40 metres of horizontal outreach on an IVECO Astra 8x8 chassis. If your job needs serious height and reach but no material lifting, this is the more nimble choice of our two 54m units as it doesn’t come with a winch. Available wet hire only, 24/7 across Brisbane and SEQ.

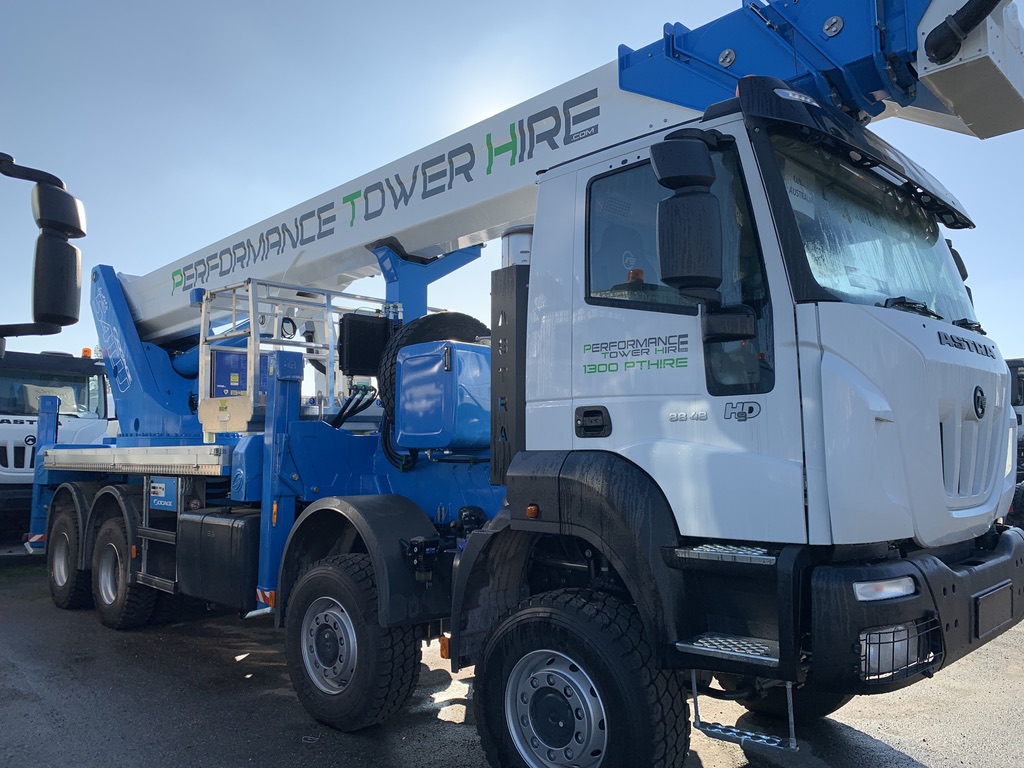

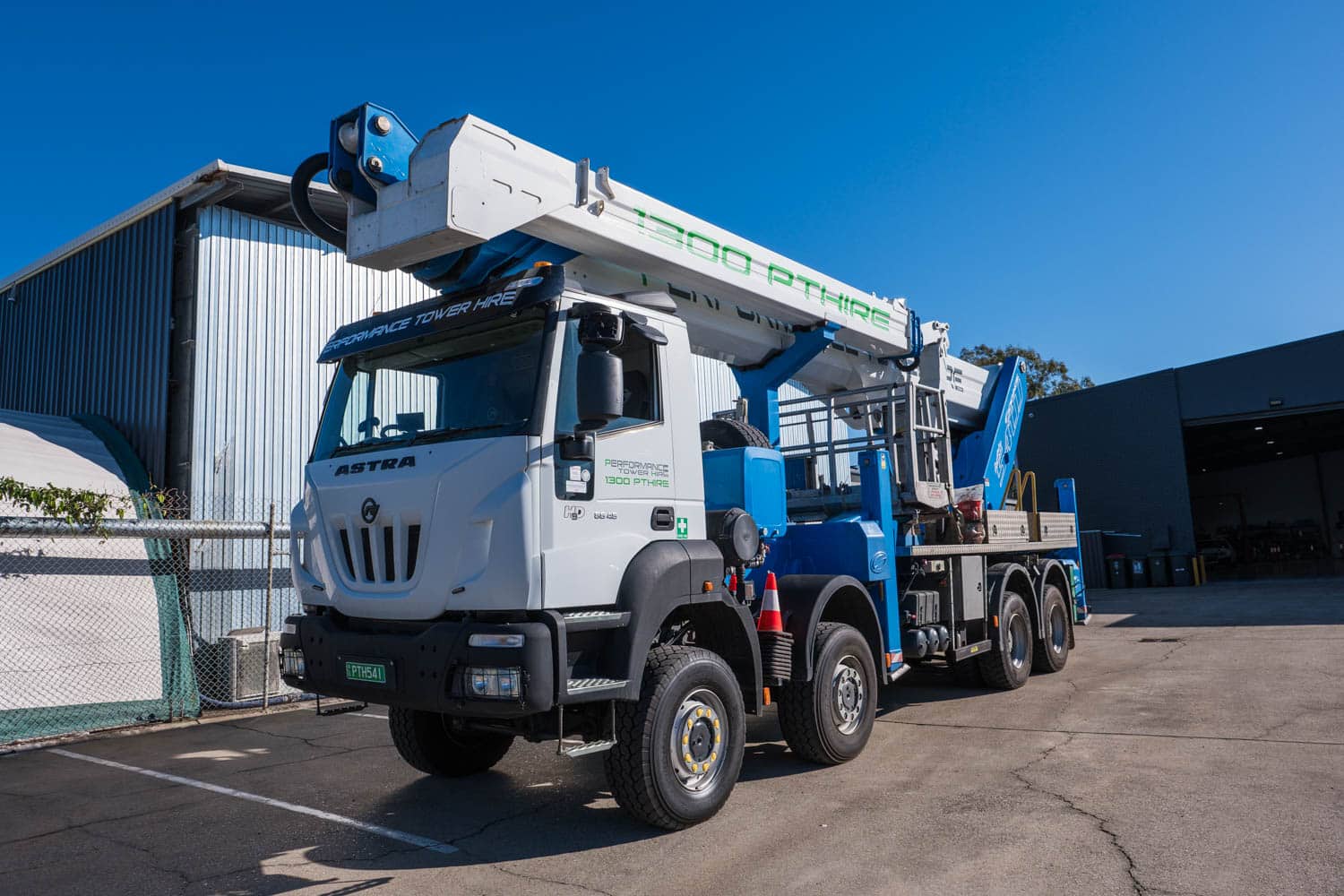

PTH 541 Socage TJJ54 parked in yard

Book PTH541 Today

This powerful EWP gets hired out in advance. Let us know your project dates, and we'll confirm availability and provide a free quote.

Fleet Unit

PTH541

Working Height

54m

Maximum Radius

40m

Platform Weight Capacity

600kg

Model Socage TJJ54
Working Radius at Max Height 6m
Outrigger Spread 8.63m x 6.46m
Platform Size (LxWxH) 2.3/3.6 x .90m x 1.1m
Platform Rotation 90+90 degrees
Turntable Rotation 700 degrees
Truck Type Astra
Drive Type 8x8
Travelling Height 4.3m
Overall Length 10.75m
Overall Width 2.5m
Weight 33 tonne
Country of Origin Italy

Where PTH541 Is Used

The Socage TJJ54 is a big machine. We call it ‘the penthouse’ on site, because the basket soars high into the air above you. It’s not for every working-at-height job, but it is hugely effective when matched to the right job. Here are some of the industry uses our clients adopt it for:

  • Major infrastructure and large-scale construction sites needing height over everything else
  • High-rise facade, roofing and building maintenance
  • Telecommunications tower work
  • Powerline corridor and energy sector jobs where reach is the priority

Need a winch to go along with your Socage TJJ54? PTH542 covers the same 54 metres with a 1,500kg winch attachment.

Safety On Site

PTH541 goes out fully serviced and checked against AS 2550 before every job, with all WHS documentation sorted in advance. Its 8x8 chassis is rated for variable ground conditions, so our pre-start process includes a specific check on site footing and outrigger placement before the boom goes up. That’s on top of the standard safety checks every fleet unit gets before it heads out to a job.

Wet Hire Only

PTH541 is wet hire only. At this height, the margin for error shrinks, so every booking comes with one of our experienced, licensed operators who are familiar with this EWP. You get the full potential of what this machine can achieve, because they’re comfortable and skilled at the controls. Familiarity with the machine and the work it performs means your work gets done faster and more safely.

PTH541 FAQs

No. At 54 metres, PTH541 sits well above our 20m dry hire threshold, so it's available as wet hire only, with one of our licensed operators included.

PTH541 is one of the most requested units in the fleet, so we'd recommend locking in your dates as early as possible

Our operators are M31A qualified. Because PTH541's boom exceeds 11 metres, Queensland WHS regulations require a current WP high-risk work licence to operate it, which every PTH541 job is covered by as standard.

Its 8x8 chassis handles variable ground conditions well, though our team will always talk through your site access before booking to confirm it's the right fit.

Contact us for a free quote

Call us when you’re planning your next project so we can assist you with safe height access as fully insured and accredited professionals.
